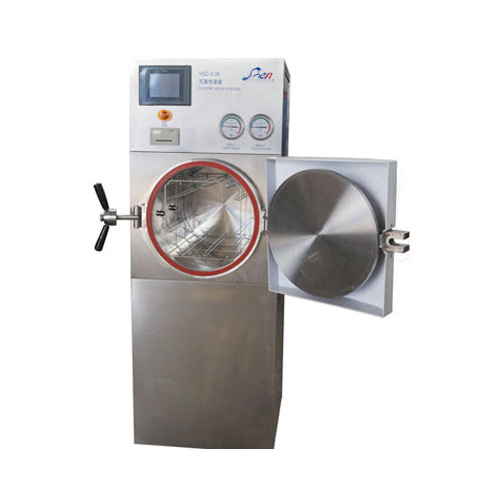

Sterilizing transferring cabin

Sterilizing transferring cabin adopts PLC control system and human-machine interface. The built-in electric heating steam generating plant is installed. The door is completely sealed and the whole sterilizing process is full automatic control. It is widely used in the pharmaceutical factory, hospital and biological laboratory, etc. Main Parameters and Utilities Design Pressure 0.245 MPa Vacuum […]

CONTACT US


Sterilizing transferring cabin adopts PLC control system and human-machine interface. The built-in electric heating steam generating plant is installed. The door is completely sealed and the whole sterilizing process is full automatic control. It is widely used in the pharmaceutical factory, hospital and biological laboratory, etc. Main Parameters and Utilities Design Pressure 0.245 MPa Vacuum […]

  • Details

Sterilizing transferring cabin adopts PLC control system and human-machine interface. The built-in electric heating steam generating plant is installed. The door is completely sealed and the whole sterilizing process is full automatic control. It is widely used in the pharmaceutical factory, hospital and biological laboratory, etc.

  • Main Parameters and Utilities
Design Pressure 0.245 MPa Vacuum -0.095 MPa
Working Pressure 0.22 MPa Heat equilibrium ≦±1℃
Design Temperature 139℃ Water Source Pressure 0.1 – 0.3 MPa
Working Temperature 134℃ Compressed Air Pressure 0.5 – 0.7 MPa
  • Size &Utilities
Model

Overall Dimensions
L*W*H (mm)
Single/Double Door

Chamber Size? L*W*H(mm)

Steam Consumption (kg/cycle)

Power (Kw)

Water Consumption (kg/cycle)

Net Weight (kg)

YGC

740*585*1600

¢400*510

20

4.5

150

650
